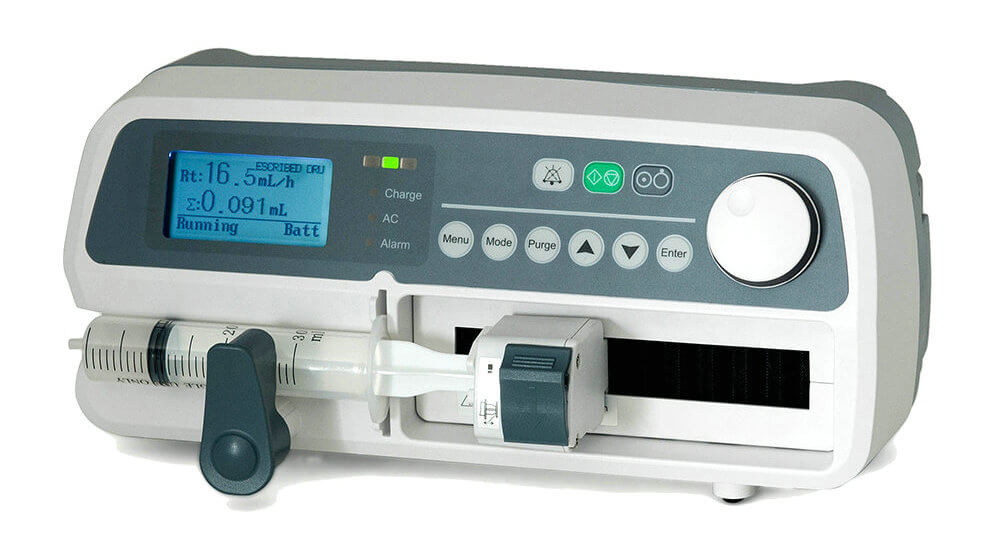

Medical TCI electronic injection syringe pump for hospital
1.Automatic anti-bolus
2.History log: 50000 events
1. Applicable syringe size: 10, 20, 30, 50/60 ml.
2. Automatic syringe size detection.
3. Automatic anti-bolus.
4. Automatic calibration.
5. Drug library with more than 60 drugs.
6. Audio-visual alarm insures further safety.
7. Wireless management by Infusion Management System.
8. Stackable up to 4 Syringe Pumps (4-in-1 Docking Station) or 6 Syringe Pumps (6-in-1 Docking Station) with single power cord.
9. Easy to use operation philosophy
10. Recommended model by worldwide medical staff.
Specifications:
| Model | DY-602 |
| Syringe Size | 10, 20, 30, 50/60 ml |
| Applicable Syringe | Compatible with syringe of any standard |
| VTBI | 0.1-9999 ml |
| ＜1000 ml in 0.1 ml increments | |
| ≥1000 ml in 1 ml increments | |
| Flow Rate | Syringe 10 ml: 0.1-400 ml/h |
| Syringe 20 ml: 0.1-600 ml/h | |
| Syringe 30 ml: 0.1-900 ml/h | |
| Syringe 50/60 ml: 0.1-1300 ml/h | |
| ＜100 ml/h in 0.1 ml/h increments | |
| ≥100 ml/h in 1 ml/h increments | |
| Bolus Rate | 400 ml/h-1300 ml/h, adjustable |
| Anti-Bolus | Automatic |
| Accuracy | ±2% (mechanical accuracy ≤1%) |
| Infusion Mode | Flow rate: ml/min, ml/h |
| Time-based | |
| Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc. | |
| KVO Rate | 0.1-1 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, near empty, end program, low battery, end battery, |
| AC power off, motor malfunction, system malfunction, standby, | |
| pressure sensor error, syringe installation error, syringe drop off | |
| Additional Features | Real-time infused volume, automatic power switching, |
| automatic syringe identification, mute key, purge, bolus, anti-bolus, | |
| system memory, key locker | |
| Drug Library | Available |
| Occlusion Sensitivity | High, medium, low |
| Docking Station | Stackable up to 4-in-1 or 6-in-1 Docking Station with single power cord |
| Wireless Management | Optional |
| Power Supply, AC | 110/230 V (optional), 50/60 Hz, 20 VA |
| Battery | 9.6±1.6 V, rechargeable |
| Battery Life | 7 hours at 5 ml/h |
| Working Temperature | 5-40℃ |
| Relative Humidity | 20-90% |
| Atmospheric Pressure | 860-1060 hpa |
| Size | 314*167*140 mm |
| Weight | 2.5 kg |
| Safety Classification | Class Ⅱ, type CF |

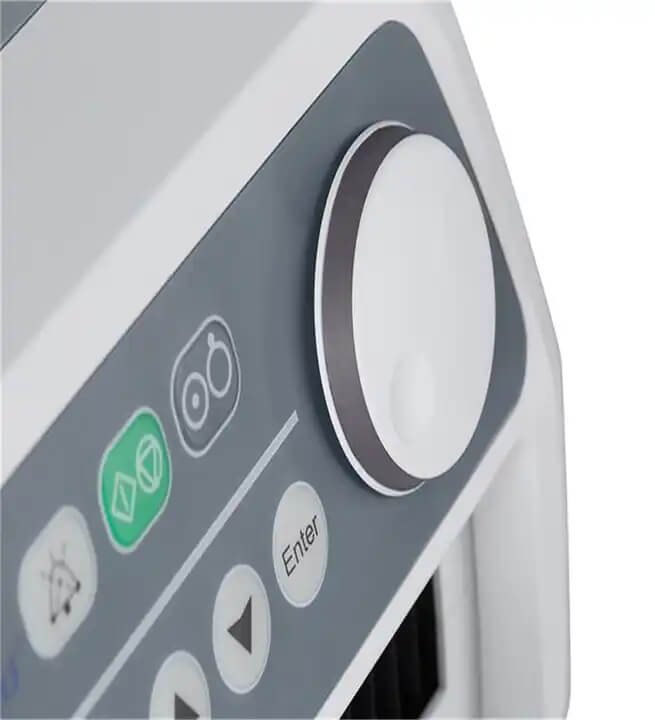

Detailed images:
