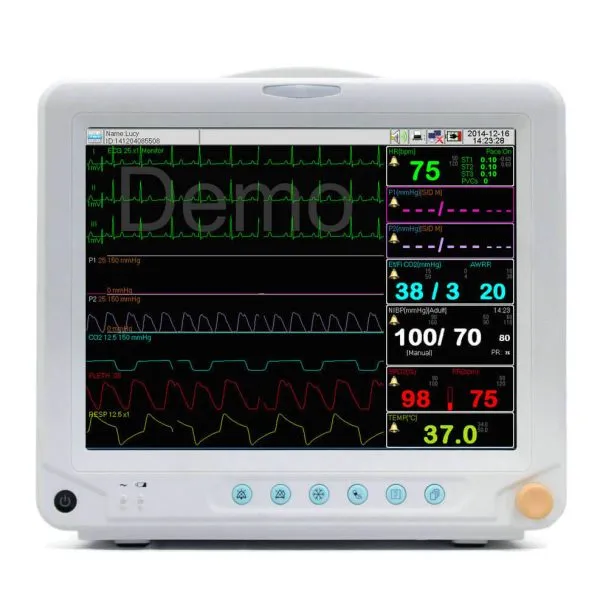

12 inch lcd ETCO2 SPO2 PR ECG multi parmeter patient monitor
12.1′ color TFT LED screen
support HDMI output, USB output
ECG / SpO2/ PR/ TEMP /NIBP/HR
1. 12.1′ color TFT LED screen supports display 9~13 waveforms, support HDMI output
2. Support 7 channel ECG waveform display simultaneously
3. Newly advanced ARM A8 microcontroller,calculating speed is 4 times faster thantraditional products
4. Generate ID automatically when register a new patient and complete patient information management. Support medical history search by patient ID, name andmobile number
5. Support 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review
6. Support data control / input by mouse / keypad, optional
7. Three-level acousto-optic alarm and support alarm review
8. Multi-display mode to meet different clinical requirement, standard interface, big font,OxyCRG, trend graph, NIBP review and full leads ECG interface.
9. 21 types of Arrhythmia analysis and real-time S-T segment analysis and pacemakerdetection
10. Suitable for monitoring adult, pediatric and neonatal patient
11. Support online software upgrading by net/USB
12. Support wired/ wireless CMS based on TCP/IP (optional built-in WIFI module)
Specifications:
| Dimension | 310mm*290mm*150mm |
| Weight | 3.4 Kg, excluding accessories |
| Voltage | AC100~240V, 50/60HZ, Power≤60W |
| Resolution | 800*600 pixels |
| Type | Rechargeable lithium battery 14.8V, 2200mAH |
| Charge Cycle | 500 times |
| Working time | 2 hours (larger battery for 4-5 hrs, option) |
| Accuracy | ±1bpm or ±1%, whichever is greater |
| Resolution | 1bpm |
| CMRR | Diagnostic Mode ≥ 89 dB |
| Input impedance | ≥5.0 Mohm |
| ECG signal range | ±12 mV (Gain × 0.25 ) |
| Leakage Current | < 10 μA |
| Sweep speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
Detailed images:
