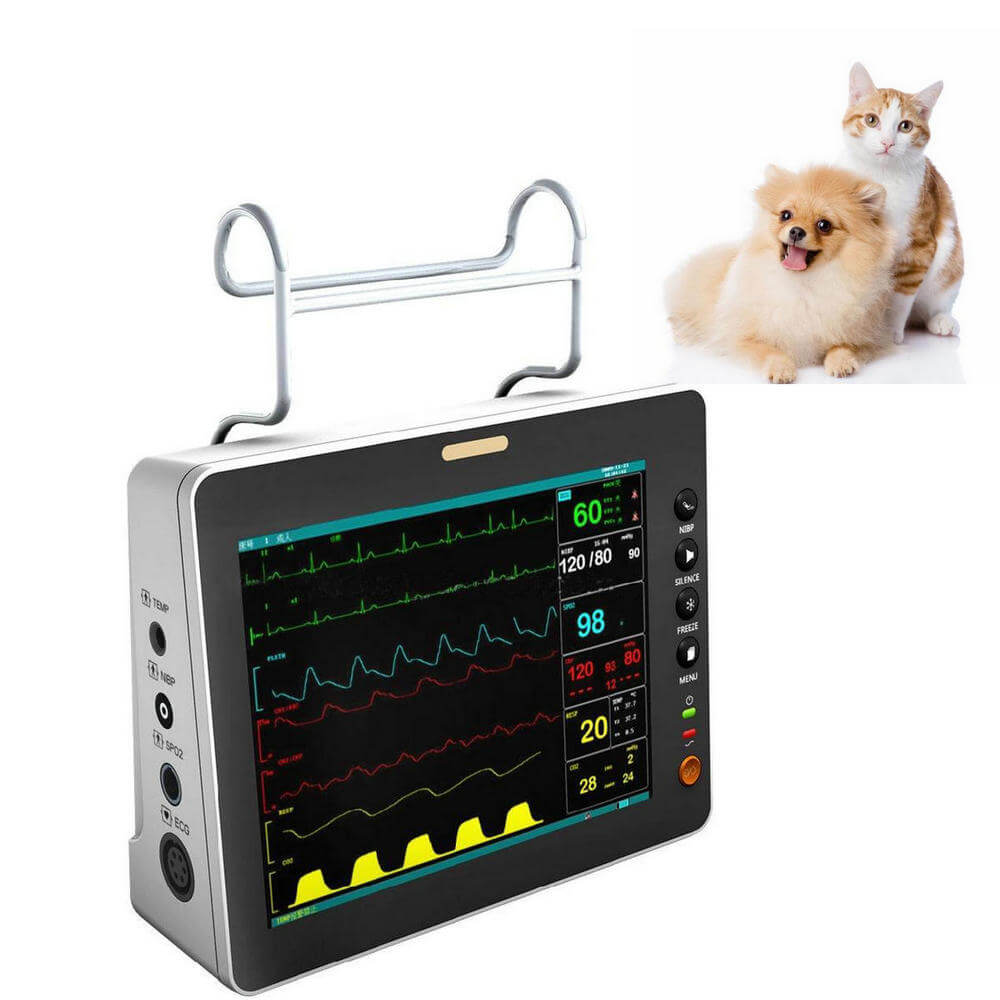

8 inch ambulance veterinary cardiac heart rate patient monitor
For ambulance or veterinary use
8.0 inch high-brightness TFT LED
Support display maximum 8 waveforms
Support 6 channel ECG waveform display simultaneously
Standard configuration: ECG / SpO2/ PR/ TEMP /NIBP/HR
- Waterproof design appearance, low power consumption, without air fan and silence, battery working time is at least 5.5hours,recharge time is2.5hours.Suitable for medical field rescue, ambulance, move and transit
- Display mode of big font, trend review, ECG 7 lead, support one key operation, touchable screen is optional. Suitable for all working places, can used for neonate, child, adult and veterinary; support mode of diagnose,monitor and operation
- 15 type arrhythmic analysis,7-lead ECG waveform display in phase. 15 type drug calculation and titration table
- Efficient resistance to interference of defibrillator and electrosurgical cautery, respiration can choose III,meet requirement of operation, ward
- Use digital SpO2 technology,can test for 0.1% weak,high accuracy
- Anti-ESU,anti-defibrillator,RA-LL impedance respiration,digital filtering
- Double over-pressure NIBP protect,temperature drift
- Optional functions:Touchable screen, EtCO2, Central Monitoring System
Detailed images:
| Model | DY-F4 |
| Screen | 8″ color TFT |
| Resolution | 800*600 |
| Parameters | 3/5-Lead ECG, RESP, SpO2, NIBP, PR, 1-TEMP |
| Optional | Mainstream/Sidestream EtCO2, Touch screen，Wall mount, Trolley, Central station |
| Power | 110 V / 60 Hz , 220 V / 50 Hz |
| SPO2 | Digital SpO2 technology, excellent anti- interference performance, low perfusion (0.1%) |
| Analysis | 15 kinds of arrhythmia analysis, 15 kinds of drug concentration analysis |
| Battery | continuously working for 5.5 hours |
| Packing Size | 40*15*28 cm |
| Gross Weight | 2.6 KG |
Detailed images:
