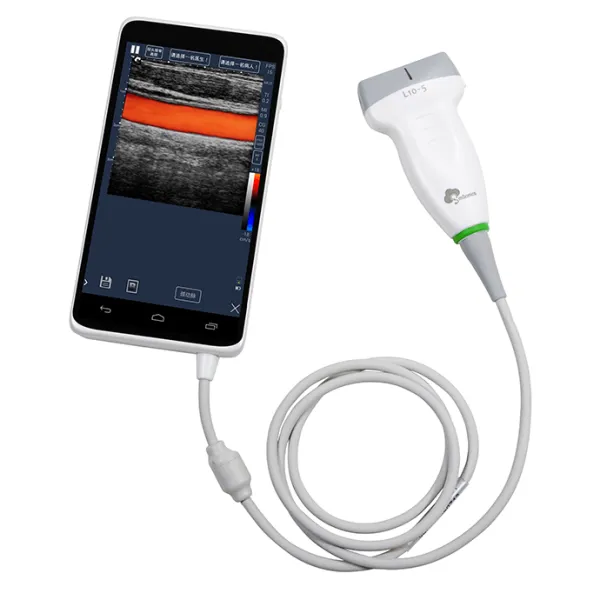

128 elements portable USB linear ultrasound probe MU3
It is a handheld, pocket-sized ultrasound tool that provides real-time grayscale anatomic and Color Doppler blood flow images with touch screen.
It is the preliminary screening tool for you-from patient to patient-within your primary, critical, or specialty care clinical environment.
1. Detect pericardial effusion, chest fluid or internal bleeding at ER or in ambulance, enabling prompt initiation of treatment.
2. View fetus as they grow.
3.Detect fetal heart beats.
4.Monitor the amount of amnitic fluid during delivery.
5. Find plaque in Carotid, avoid stroke before it strikes.
6. Place lines in veins with visual confidence.
7.Find nodules in thyoids, livers or breasts during screening.
8.Monitor stones in Kidneys, gall baldders and baldders.
9. Verify bone fractures without X-ray
Specifications:
| Monitor | 6 inch LCD high-resolution (1280*720) full touch screen |
| Probe Type | 80 elements |
| Frequency | Convex array 2-5MHZ / Linear array 5-10MHZ |
| Displaying Mode | B, M,C,B+B,B+M |
| Cine-loop | 1024 Frames |
| Frame Rate | Convex:16fps / Linear:24ps |
| Depth | Convex:≤200mm / Linear: ≤70mm |
| Grayscale | 256 level |
| Gain | Convex: 0~150dB adjustable |
| Linear: 0~120dB adjustable | |
| Image Processing | Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc. |
| Power | Built-in battery(5400mAh) to support 2h for continuous scanning |
| Image Format | JPEG, DICOM |
| Language | Over 60 different language including English, Spanish, German etc. |
| Measurement | Length, Area, Arrow, Angle, Perimeter, Text. |
| Camera | 5M auto focus |
| Wireless Connection | WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM) |
| Memory | 64GB |
| Connection Interface | Micro USB2.0, HDMI,3.5mm headphone jack, |
| Operating System | Android |
| Printer | WIFI printer |
| File Management | Patient file & image file |
| Cloud | Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform |
| Technical Training | Online and offline tutorial, self-built online training material |
| Remote Software Update | Yes |
| Size | 165*85*23mm |
| Weight | Convex:570g / Linear:550g |
| Standard Configuration | Main unit (Transducer included): 1pc |
| USB wire: 1pc | |
| Adapter: 1pc | |
| Carrying bag: 1pc | |
| Bag of gel(20g): 1pc |
Detailed images:
