Convex linear cardiac 3 in 1 wifi doppler ultrasound probe 5CPL

CProbe-5CPL Wireless Color Doppler Ultrasound Scanner
Cardiac Convex Linear Probe
Wireless Mini Color Doppler Ultrasound
3 in 1 Double Head Wireless Probe Ultrasound

Category
Send inquiry

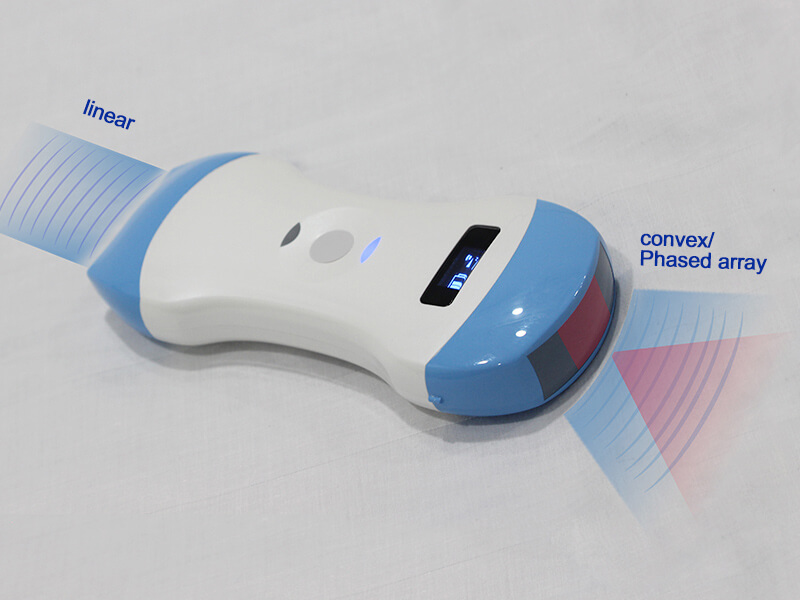

• Convex+linear+phased array 3 in 1
• Advanced digital imaging technology, clear image
• High cost-effective
• Wireless connectivity, wireless charging, easy to operate
• Small and light,easy to carry
• Applicable in emergency, clinic, outdoor and vet inspection
• Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing
• Free software, no didden fees, and unlimited users
• Different APP for IOS/Android/Windows system
• APP with Chinese, English, Italy, Spain, Russian, German,Portuguese(Brazil)

Convex linear cardiac 3 in 1 wifi doppler ultrasound probe 5CPL (10)

Convex linear cardiac 3 in 1 wifi doppler ultrasound probe 5CPL

Specifications:

Frequency: Convex/Phasedarray probe 3.2MHz/5MHz, Linear probe 7.5MHz/10.0MHz
Display Depth: Convex 90/160/220/305mm, Linear 20/40/60/80mm
Scan angle and width: convex 45°, Phasedarray 80°, linear 40mm
Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement,and the enhancement function of needle point development.
Noise reduction: 0-1-2-3-4
Gain: 30db-105db
Dynamic Range: 40/50/60/70/80/90/100/110
Cineplay: auto and manual, frames can set as 100/200/500/1000
Measure: Length, Area, Angle, Obstetrics
Battery working time: 3 hours
Charge: by wireless charger, 2 hours
Dimension: 156×60×20mm
Weight: 250g
Wifi type: 802.11g/20MHz/5G/450Mbps
Working system: Apple iOS and Android, Windows

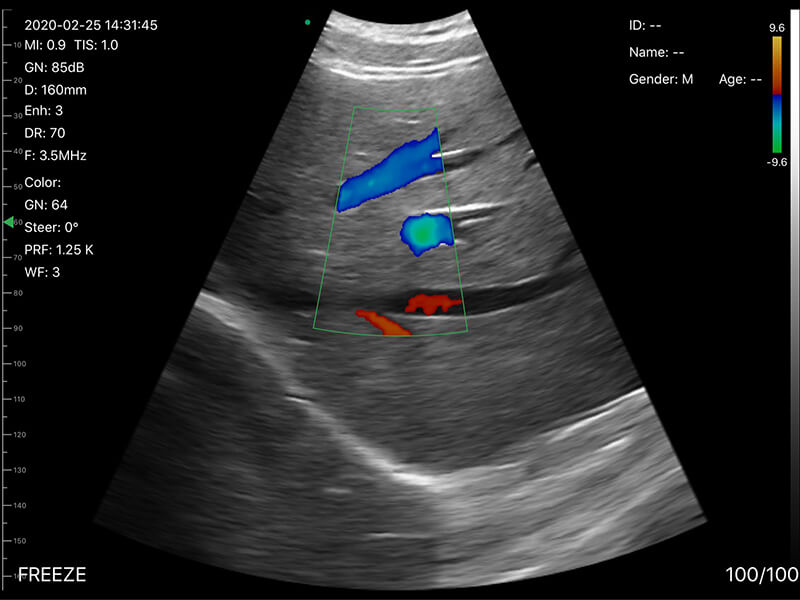

Detailed images:

Convex linear cardiac 3 in 1 wifi doppler ultrasound probe 5CPL

Convex linear cardiac 3 in 1 wifi doppler ultrasound probe 5CPL

Convex linear cardiac 3 in 1 wifi doppler ultrasound probe 5CPL
