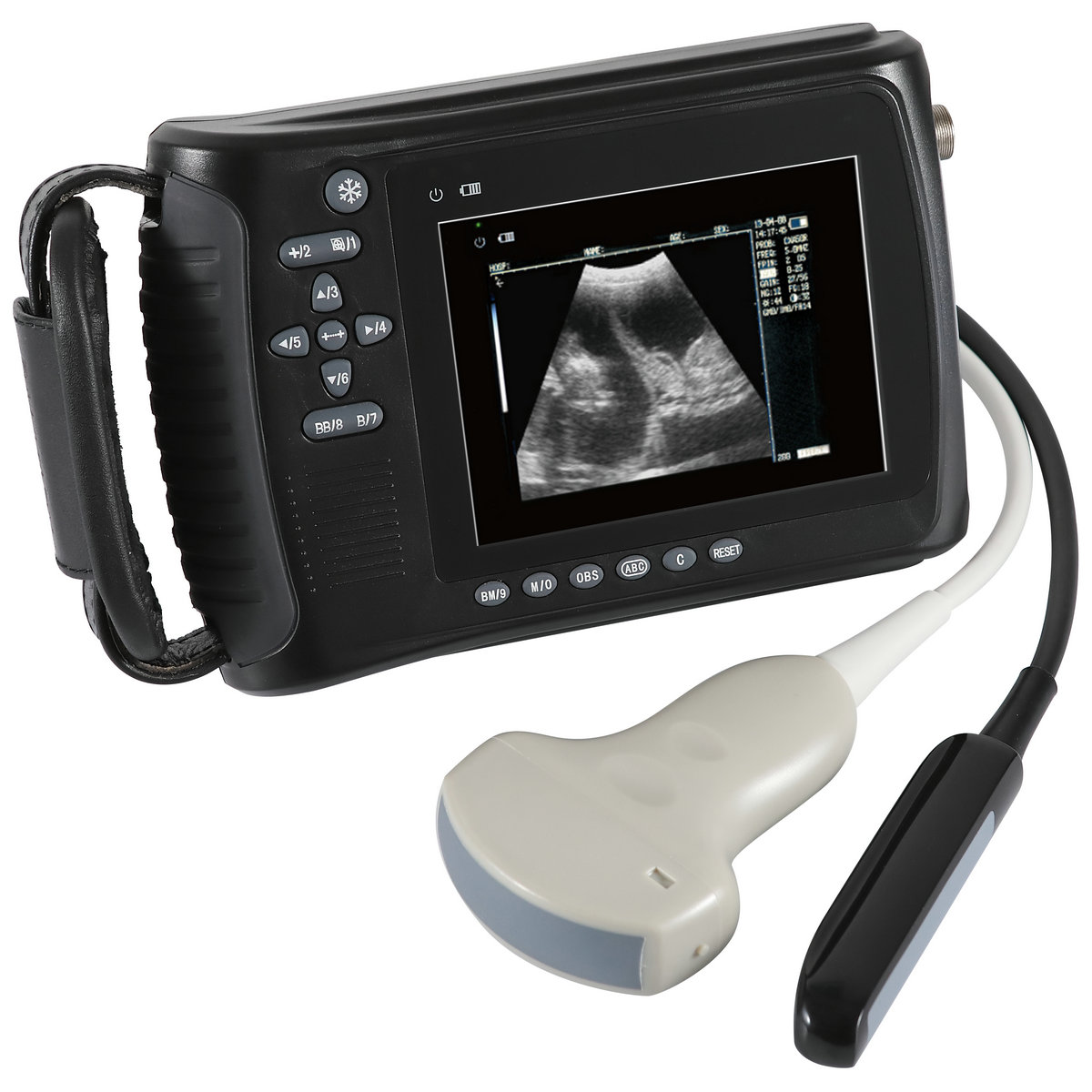

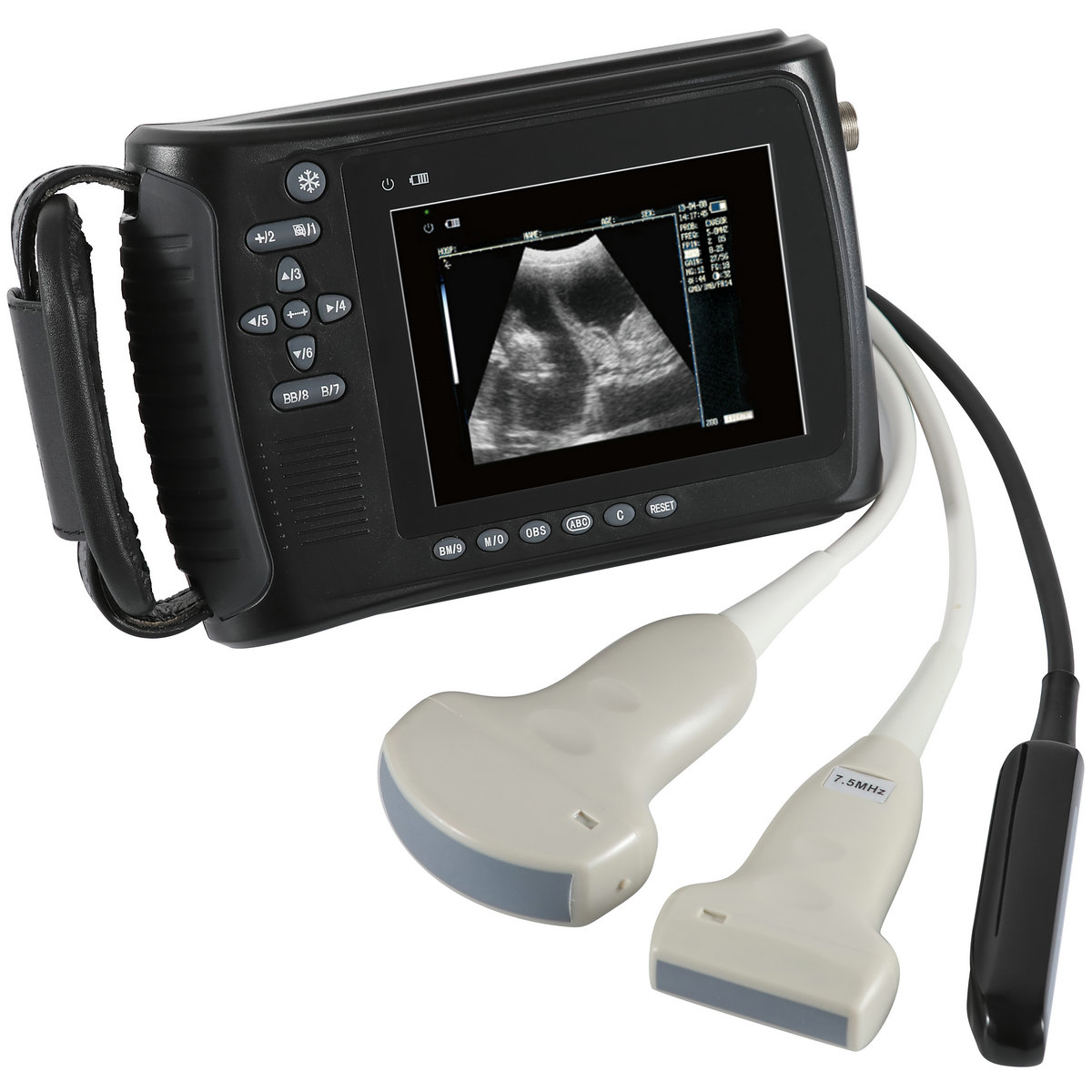

Portable ecografo veterinario veterinary ultrasound PL-3018V
Mainly Application : swine , ovine , goat , bovine , equine , camel , alpaca , dog , cat , rabbit and etc .
Detect Depth(mm):≥140
Blind zone(mm):≤3
Monitor size:5 inch
Display mode:B, B+B, B+M, M, 4B
5″ FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.
Hand-held design, smart and light, easy to carry, convenient for detection.
OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
128 frames permanent storage, 256 frames cine loop.
Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
Easy to print out all kinds of detection images and reports.
Optional mouse to operate easier.
Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.
Specifications:
| Detect Depth(mm) | ≥140 |
| Blind zone(mm) | ≤3 |
| Monitor size | 5 inch |
| Display mode | B, B+B, B+M, M, 4B |
| Image gray scale | 256 |
| Image storage | 128 |
| Cine loop | ≥400 frame |
| Scan depth | 120mm-220mm |
| Image flip | up/down, left/right |
| Focus position | Adjustable |
| Posture mark | 15 |
| Image process | Histogram, color encode, gama, image smooth |
| Probe frequency | Adjustable ( 3 point each probe ) |
| Frame correction | Adjustable |
| Measurement | distance, circumference, heart rate, EDD, area, volume, GA and etc. |
| Notation | date, time, name, sex, age, full screen words edit and etc. |
| Output report | regular |
| Output | USB2.0, VIDEO( PALD, NTSC) |
| Charging method | adapter, battery |
| Adapter rating | 100-240V~, 50-60Hz, 70VA |
| Battery | 2600mAh, continuous work: ≥3 hours |
| Machine dimension | 230mm(L)x120mm(W)x38mm(H) |
| Net weight | 700g |
Detailed images：
