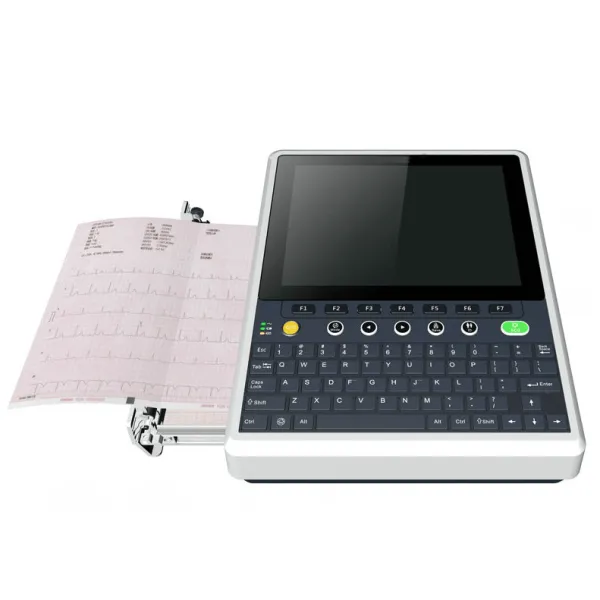

10.4” touhscreen 12 channel ecg machine with analyzer iMAC120
Wirless 12 Channel ECG Machine
iMAC120 is classic 12 channel ECG machine. It supports wired way and Wi-Fi to connect Internet. Clinicians could transform ECG reports by connect to the hospital’s information system, such as PACS, HIS, HL7 etc.
- iMAC 120 can be used for Adult, Pediatric and newborn
- 12-lead synchronous acquisition and display
- 10.4inch High Resolution Touch Screen (1024×768)
- Hidden handle design ,easy to carry,support the adjustment of screen angle
- Support physical full keyboard and touch the soft keyboard at the same time, support the keyboard and the handwriting input patient information
- 4400mA Lithium battery, DC>8 hours
- Thermal Print paper: 210/216mm, support A4 paper size print
- Machine Size: (L × W × H) 285mm×360mm×94mm: 3.7kg
- Data stage: 1000 sets
Specifications:
| ECG sampling rate | 32000Hz |
| Acquisition mode | Real-sampling, Pre-ac- quisition ,Triggering sampling, Period sampling |
| Frequency Response | 0.01 to 350 Hz |
| Baseline drift filter | off/0.01/0.05/0.3/0.6Hz |
| AC filter | off/50/60 Hz |
| CMRR(Common mode rejection) | ≥130dB |
| ADC | 24 bit |
| Input impedance | ≥50 MΩ & 10 Hz |
| Time Constant | ≥3.2 s |
| Noise Level | ≤10μV |
| Heart rate meter | 30 to 300 BPM ±10% |
| Sensitivity/gain | 2.5, 5, 10, 20,40 auto mm/mV |
| Boot time | ≤15 s |
| Power supply | AC input or battery operation |
| Input voltage | 100 to 240 VAC ±10% |
| Input power | 75 VA |
| AC frequency | 50/60 Hz ± 3 Hz |
| Battery type | Rechargeable Lithium ion battery, 4400 mAh |
| Charge time | ≤ 3h to 90% and ≤ 3.5h to 100% with device off |
| WIFI function | Glassgow ECG Algorithm can make precise diagnosis according to patient age, gen-der, racial taking medicine history, etc., Especially for AMI, Ventricular Fibrillation, Ventricular Tachycardia, Bradycardia, ma-lignant arrhythimia, etc. |
