Zoncare portable 12 lead ecg machine 3 channel iMAC300
3 channels ECG machine with integrated printer
Support formats: ZQECG, PDF, PNG, XML, HL7, SCP
Original i-filter adaptive filtering technology has greatly improved the ECG signal quality
- Digital sampling rate: 32000Hz
- A/D converter: 24 bits
- 1s baseline stability
- Frequency response: 0.01-350Hz
- Support double pole pacemaker detection
- Support hierarchical gain
- Support peripherals: card reader, scanner, laser printer, U disk, SD card
- Support formats: ZQECG, PDF, PNG, XML, HL7, SCP
- Original i-filter adaptive filtering technology has greatly improved the ECG signal quality
Specifications:
| Model number | iMAC300 |
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 24 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
| CMRR | >80dB |
| >100dB (with filter) | |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array |
| 8 dots/mm ( vertical ) | |
| 16 dots/mm ( horizontal, 25mm/sec ) | |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz |
| DC: 12V rechargeable battery | |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimension of Packing | 410mm×340mm×260mm |
| Weight | 1.2 KG |

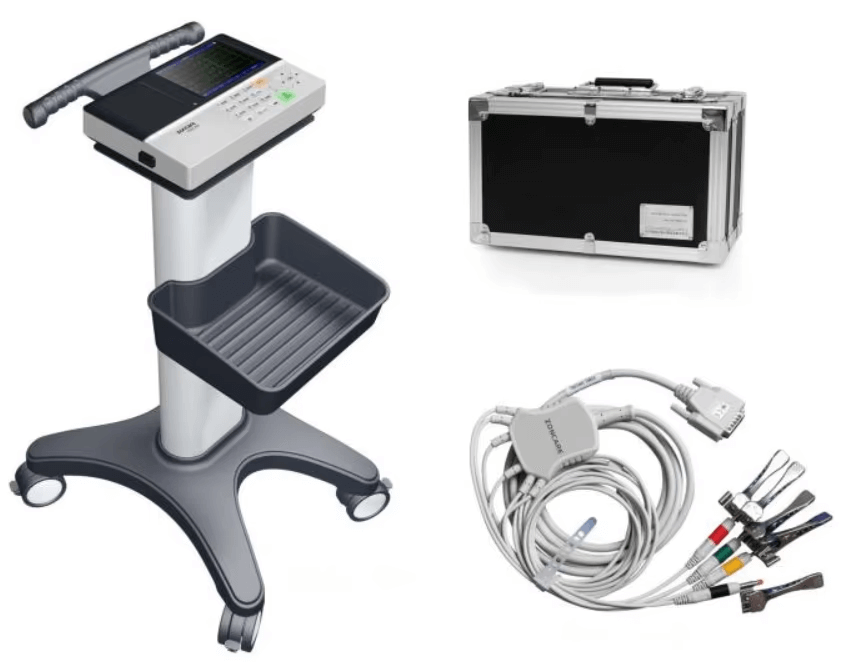

Detailed images:
