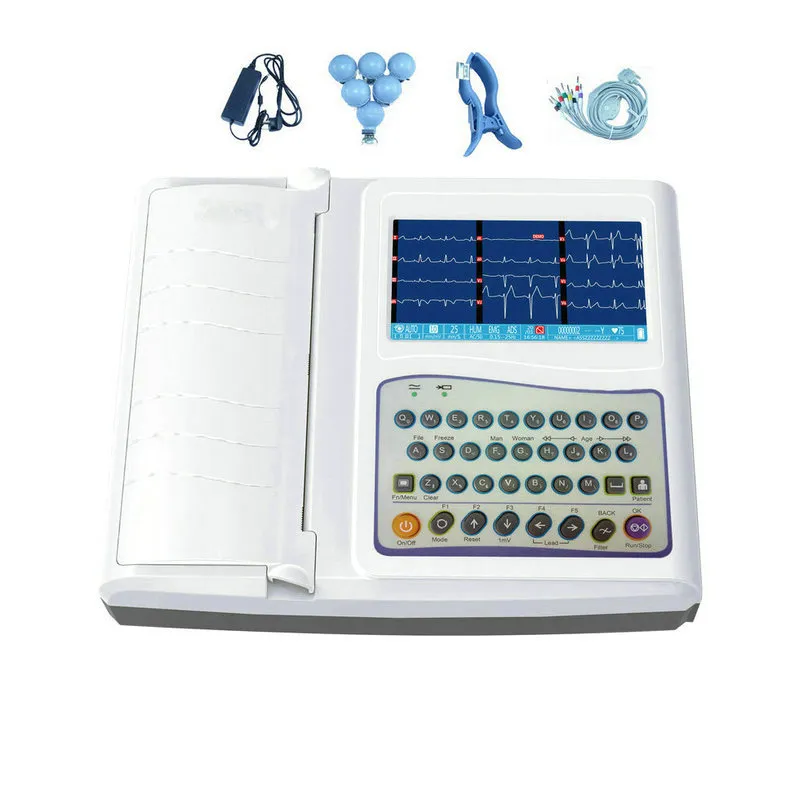

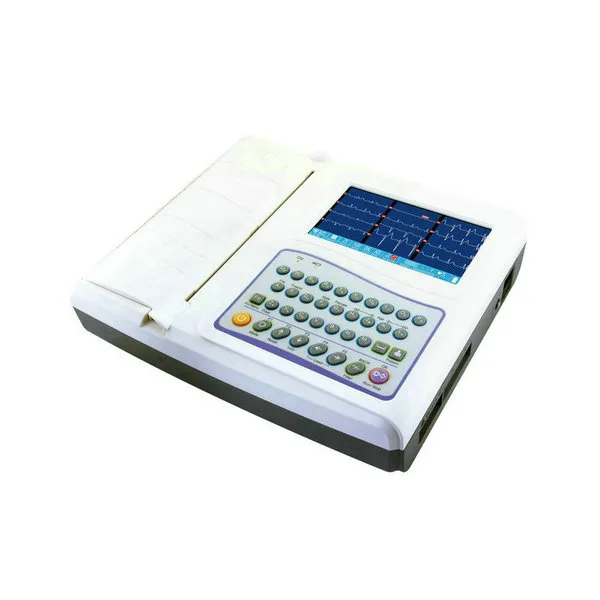

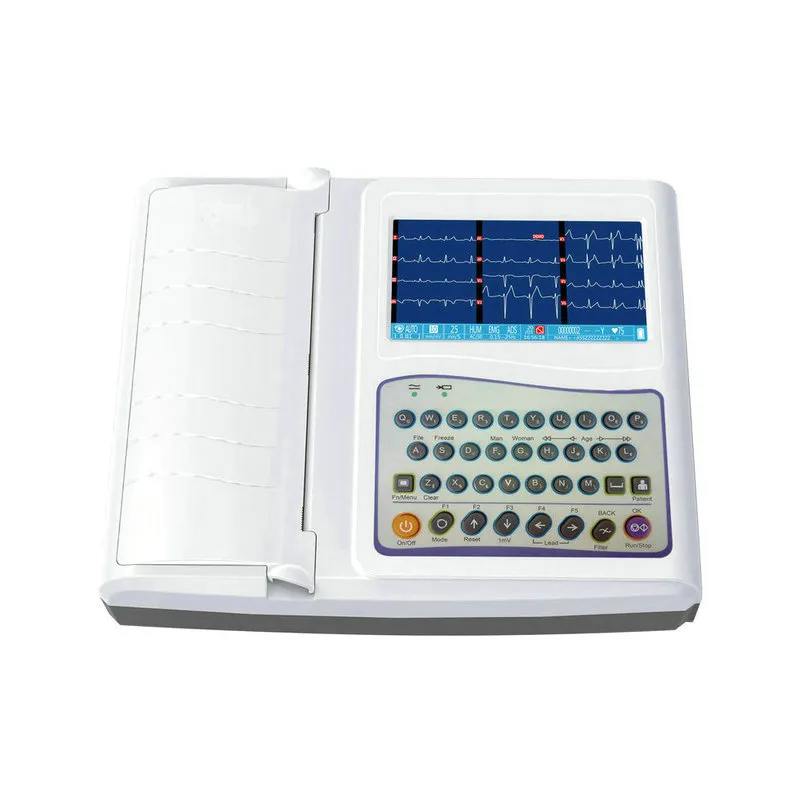

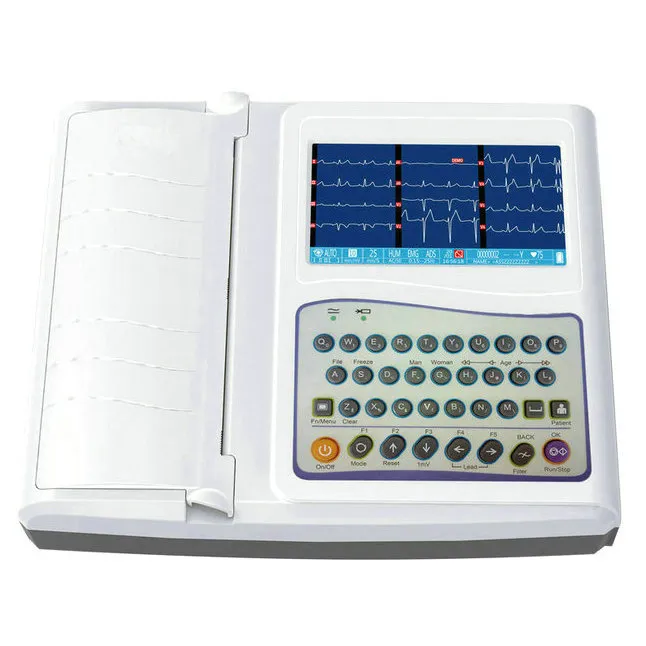

Portable ekg machine 12 lead ecg machine 12 channel ECG-8121
Portable 12 channel ECG machine with 10 inch colour LCD, Alphabet keyboard and Built in rechargeable Li-ion battery
High quality cost-effective design for hospital and clinics
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
Specifications:
| Lead standard | 12 leads |
| Calibrating voltage | 1mV±2% |
| Voltage tolerance | ≥±500mV |
| Inter-channel interference | ≤0.5mm |
| Frequency response | 0.05~160Hz(-3db) |
| Patient current leakage | <10μA |
| Noise level | <15μVp-p |
| Sensitivity valve | ≤20μV |
| Paper speed | 6.25,12.5, 25,50mm/s(±3%) |
| Time constant | ≥3.2s |
| Input dynamic range | ±10Vpp |

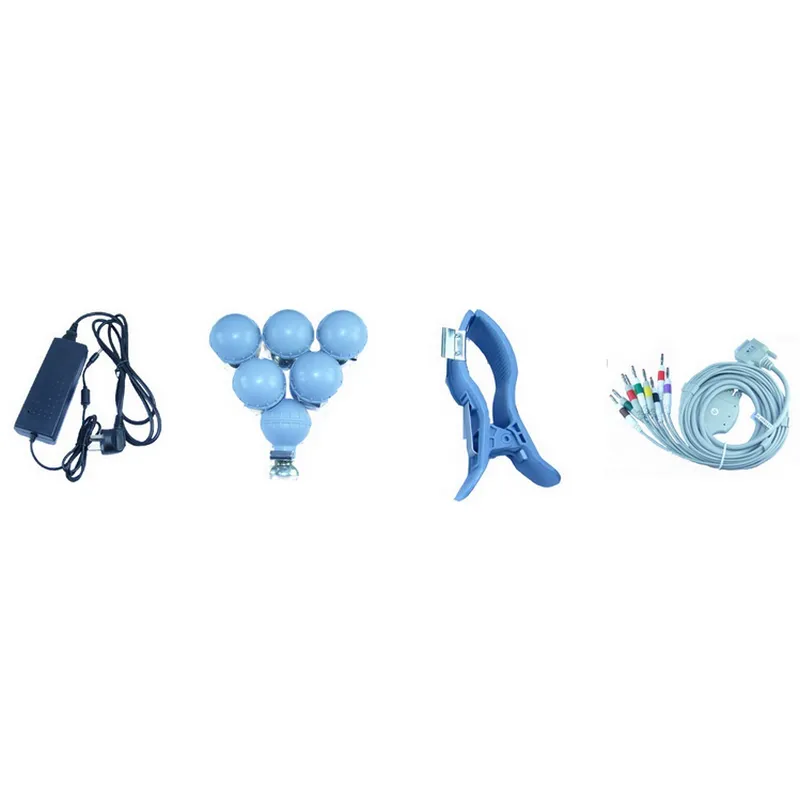

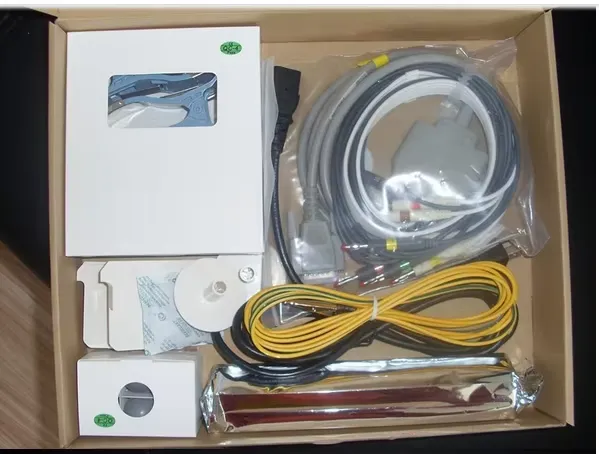

Detailed images:
Related products
FAQ
Q1: What if I have no import experience?
A1: We have a reliable freight forwarder who can deliver the goods to your door by sea, air or express. In any case, we will help you choose the most suitable transportation service.
Q2: What is the delivery time?
A2: Usually the dlivery will be made 7-15 days after payment.
Q3: What is the payment term?
A3: The payment we accept: paypal, Credit card, TT(bank transfer).
Q4: What is the product warranty?
A4: We offer 1 year warranty for our prodcuts and free technical service online all the time.
